Old 10-28-09, 07:31PM   #1
70_boosted
Registered User

Join Date: Oct 2007
Location: cheyenne, wyoming
Posts: 127
Default rear 4-link confussion

i have seen a couple different routes to go, but still looking to find whats the best most efficient route. i have seen a couple kits offering parallel bar setups. some offering triangulated link setup.

what can i use to best work on my 70 bird? i am in the process of minitubbing right now, so i was wanting to go to link/coilover rear to help with lowering, handling, larger tires, etc. can i get away with fitting in a universal kit from jegs or summit? let me know thanx
70_boosted is offline   Reply With Quote
Old 10-28-09, 09:13PM   #2
Gach
Administrator

Gach's Avatar

Join Date: May 2003
Location: ....
Posts: 19,353
Default

Yeah...you can, there's a whole bunch that sell kits...S&W then there's
Chassis Engineering. I think they both work about the parallel bar setups. and triangulated link setup. Might be better off getting it though one of
them, they have tech lines.
__________________
The things they hide, the way they spin things, the excuses that they make and the things they omit.
Gach is offline   Reply With Quote
Old 10-28-09, 09:55PM   #3
Mb125
Registered User

Mb125's Avatar

Join Date: Mar 2005
Location: AZ
Posts: 4,165
Default

Why not just move the leaf springs inboard, they sell offset shackles and frame connectors.
__________________
You can shear a sheep many times, but you can only skin them once.
Mb125 is offline   Reply With Quote
Old 10-28-09, 11:18PM   #4
70_boosted
Registered User

Join Date: Oct 2007
Location: cheyenne, wyoming
Posts: 127
Default

well i have it up and cut into with the mini tubbing, figured add the 4-link. more up to date, adjustable with my ideas of lowering, allows for larger rims/tires. relatively cheap upgrade, minus the work hours installing/welding.
70_boosted is offline   Reply With Quote
Old 10-29-09, 08:55PM   #5
70_boosted
Registered User

Join Date: Oct 2007
Location: cheyenne, wyoming
Posts: 127
Default

http://www.streetrodgarage.com/stree...d4linkkit.aspx

this is what im thinking as far as the rear suspension set up, this one or this style.
70_boosted is offline   Reply With Quote
Old 11-02-09, 11:04PM   #6
SDMAN
Registered User

Join Date: Jul 2002
Location: Mesa, AZ 85204
Posts: 361
Default

Maybe Im just stating the obvious, but thats not a 4-link. As it clearly says, its a 4 bar. Nothing wrong with a 4 bar. They are very popular. But there's a world of difference when it comes to adjustability at the dragstrip between a 4 bar and a 4-link. No comparison.
SDMAN is offline   Reply With Quote
Old 11-04-09, 11:01PM   #7
70_boosted
Registered User

Join Date: Oct 2007
Location: cheyenne, wyoming
Posts: 127
Default

ok im not looking for a full blown drag style set up, the 4 triangulated bar/link whatever setup, allows me to take advantage of the mini tub, coilovers, etc
70_boosted is offline   Reply With Quote
Old 12-18-09, 07:49PM   #8
DocsTA
Turbo addict

DocsTA's Avatar

Join Date: Feb 2009
Location: USA
Posts: 1,146
Default

Are you creating your own mini tubs or using the Detroit speed kit?
__________________




1979 Trans-Am Turbo Charged 535 IA2,
CV 1 heads with convertible exhaust option. 305cc, flowing 405cfm with mild intake port clean up


1979 Silver Anniversary 4 speed, numbers matching.
DocsTA is offline   Reply With Quote
Old 12-19-09, 11:47AM   #9
Mb125
Registered User

Mb125's Avatar

Join Date: Mar 2005
Location: AZ
Posts: 4,165
Default

What size tire you plan on using
__________________
You can shear a sheep many times, but you can only skin them once.
Mb125 is offline   Reply With Quote
Old 03-09-10, 07:37PM   #10
70_boosted
Registered User

Join Date: Oct 2007
Location: cheyenne, wyoming
Posts: 127
Default

not quite positive on height etc, but im looking at running 17x7's front and 18x12's rear or maybe just 18x10's
70_boosted is offline   Reply With Quote
Old 03-09-10, 11:36PM   #11
GP428HO
Registered User

GP428HO's Avatar

Join Date: Jan 2007
Posts: 48
Default

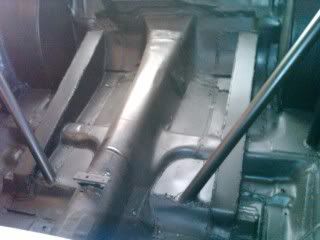

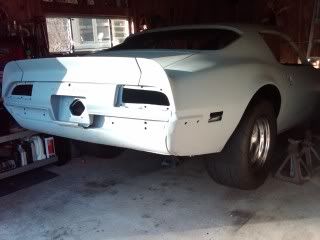

I mini tubbed my 71 bird and went with ladder bar set up.

Work in progress

[IMG][/IMG]

__________________
.


69 Grand Prix
428 H.O. loaded "J"

11.51 @ 116 mph
4200 lbs.
GP428HO is offline   Reply With Quote
Old 04-03-10, 10:08PM   #12
70_boosted
Registered User

Join Date: Oct 2007
Location: cheyenne, wyoming
Posts: 127
Default

perfect. im actually going with my own version of the g-bar set up. GP, how wide are your wheels and how much clearance do you have with your frame rails and inner wheel. im going to make my links run off the factory front spring perch, and custom up a top bar/bracket to handle the inner bound coilovers and 2 upper links. i was hoping you could give me a bit of help with gap sizes of the room from your spring perch to your axle tube.
70_boosted is offline   Reply With Quote
Old 04-16-10, 12:03AM   #13
aronhk_md

Posts: n/a
Default

You'd likely find a LOT more info on these rear setups over at pro-touring.com

Those guys are seriously into making cars with the latest and greatest suspensions. Thats where I'm headed with the 73 bird I just bought from Mark L. I want it to handle like its on rails, with the idea that I may eventually do some road racing with it.

If I understand correctly the normal 4 link setups offer more adjustability than a ladder bar one, but neither provides a lot of lateral support. Thats where the triangulated 4 link setups and the 3 link ones come in. These latter are the direction I plan to take. Probably a triangulated 4 link with adjustable coilovers.
  Reply With Quote
Old 04-16-10, 12:42PM   #14
Mb125
Registered User

Mb125's Avatar

Join Date: Mar 2005
Location: AZ
Posts: 4,165
Default

Quote:
Originally Posted by aronhk_md View Post
You'd likely find a LOT more info on these rear setups over at pro-touring.com

Those guys are seriously into making cars with the latest and greatest suspensions.
All those suspensions have been around for years and are not anything new, all the dirt track and roundy round cars have been set up that way for ages.
__________________
You can shear a sheep many times, but you can only skin them once.
Mb125 is offline   Reply With Quote
Old 05-12-10, 07:23AM   #15
aronhk_md

Posts: n/a
Default

True......what I meant by latest and greatest is the availability of specific components off the shelf, and in many cases bolt in kits. For example DSE I believe just came out with a basically bolt in triangulated 4 link setup for the 70-81 F body.
  Reply With Quote
